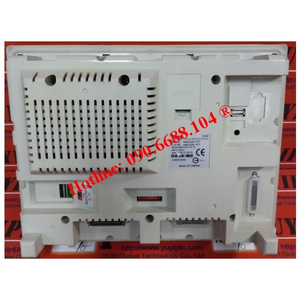

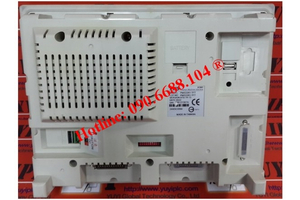

HMI Hitech PWS3261-TFT, PWS3261-FTN, PWS3261-DTN

PWS3261-DTN

PWS3261-TFT

PWS3261-FTN

Display Functions

Type

Color DSTN LCD

Color TFT LCD

Mono FTN LCD

Color

256 Colors

16 shades of grey

Back Light

CCFT

Number of Pixels

640¡Ñ480 pixels

Size

10.4"diagonal)

Display Adjustment

Contrast
(via touch panel)

Fixed

Contrast
(via touch panel)

CPU

32 bits RISC (206 MHz)

Flash Memory (total/user)

4096K/3712K

4096K/3712K

2048K/1664K

Battery Backed Memory (total/user)

1024K/768K

Touch Screen

Analog resistive type

I/O

Communication Ports

COM1 & COM2 (RS232,RS422,RS485)

Auxiliary I/O

X

Printer Port

Centronics compatible

Electrical

Power

24VDC¡Ó10%

Consumption

Under 16W

Under 20W

Under 13W

RF Emissions

CISPR 22, Class A

Electrostatic Discharge

IEC 61000-4-2(EN 55024/1998)

RF Susceptibility

IEC 61000-4-3(EN 55024/1998)

High Frequency Transients

IEC 61000-4-4(EN 55024/1998)

Environmental

Operating Temperature

0~50 C

Storage Temperature

-10~60 C

Ambient Humidity

20-90% RH (non-condensing)

Vibration Endurance

0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions

Front Panel Seal

IP 65 / NEMA 4

Cooling

Natural cooling

Structural

External Dimensions(mm)

309.0¡Ñ235.0¡Ñ82.5

Cut-out Dimensions(mm)

286.0¡Ñ211.0

Weight

2.5 Kg
