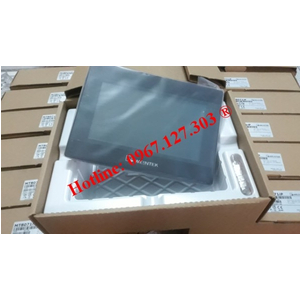

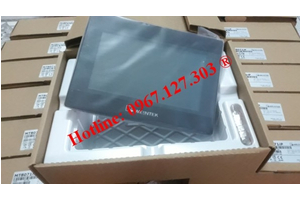

Màn hình Weintek MT8071iP2

Display 7” TFT LCD

Resolution 800 x 480

Brightness (cd/m2) 300

Contrast Ratio 500:1

Backlight Type LED

Backlight Life Time >30,000 hrs.

Colors 16.7M LCD Viewing Angle (T/B/L/R) 70/50/70/70

Pixel Pitch (mm) 0.1926(H) x 0.179(V)

Type 4-wire Resistive Type

Accuracy Active Area Length(X)±2%, Width(Y)±2%

Flash 128 MB

RAM 128 MB Processor 32-bit RISC 528MHz

USB Host USB 2.0 x 1

USB Client N/A Ethernet 10/100 Base-T x 1

COM Port COM1: RS-232 4W, COM2: RS-485 2W/4W Mark/Space parity mode is not supported.

Input Power 10.5~28VDC

Power Consumption 1A@12VDC ; 450mA@24VDC

Power Isolation Built-in

Voltage Resistance 500VAC (1 min.)

Isolation Resistance Exceed 50MΩ at 500VDC

Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

PCB Coating N/A

Enclosure Plastic

Dimensions WxHxD 200.4 x 146.5 x 34 mm

Panel Cutout 192 x 138 mm

Weight Approx.0.52 kg

Mount Panel mount

Protection Structure NEMA4 / IP65 Compliant Front Panel

Storage Temperature -20°~60°C (-4° ~ 140°F)

Operating Temperature 0° ~ 50°C (32° ~ 122°F)

Relative Humidity 10% ~ 90% (non-condensing)

Certificate CE marked

Software EasyBuilder Pro V6.06.01 or later EasyAccess 2.0 (Optional)
