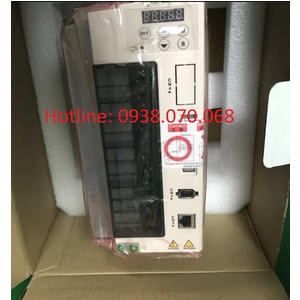

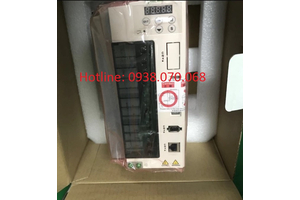

Driver Schneider LXM23DU20M3X, Bộ điều khiển Servo LXM23DU20M3X
LXM23DU20M3X
Schneider
12 tháng
Liên hệ: 0938 070 068 Mr Dũng
Email: dung0938070068@gmail.com
Liên hệ: 0938.070.068
range of product | Lexium 23 Plus |
---|---|
product or component type | Motion servo drive |
device short name | LXM23 |
network number of phases | 3 phases |
---|---|
[Us] rated supply voltage | 220 V 3 phases (tolerance: - 20...15 %) |
supply voltage limits | 170…255 V 3 phases |
supply frequency | 50/60 Hz - 5...5 % |
network frequency limits | 47.5…63 Hz |
continuous output current | 13.4 A |
continuous power | 2000 W at 220 V |
nominal power | 2 kW at 220 V |
maximum leakage current | 3.5 mA |
output voltage | <= power supply voltage |
electrical isolation | Between power and control |
type of cable | Twisted shielded pairs cable (single or double) (temperature: 0…55 °C) |
electrical connection | Terminal, clamping capacity: 1.3 mm², AWG 16 (L1-L2) Terminal, clamping capacity: 2.1 mm², AWG 14 (R, S, T) Terminal, clamping capacity: 2.1 mm², AWG 14 (PA/+, PBe) Terminal, clamping capacity: 2.1 mm²/3.3 mm², AWG 14...AWG 12 (U, V, W) |
tightening torque | PE (ground): 1.4 N.m |
discrete input number | 8 programmable discrete input(s) |
discrete input type | Programmable (CN1 terminals) |
discrete input voltage | 12...24 V DC for logic |
discrete input logic | Positive or negative (CN1) |
discrete output number | 5 |
discrete output type | Logic output(s) (CN1)12...24 V DC |
discrete output voltage | 12...24 V DC |
discrete output logic | Positive or negative (CN1) |
analogue input number | 2 |
absolute accuracy error | 0.01 % |
analogue input type | V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm T_REF voltage analog input: - 10...10 V, impedance: 10 kOhm |
control signal type | Servo motor encoder feedback |
protection type | Against reverse polarity: inputs signal Against short-circuits: outputs signal Overcurrent: motor Overvoltage: motor Undervoltage: motor Overheating: motor Overload: motor Overspeed: motor Abnormal pulse control command: drive |
communication interface | Modbus, integrated |
connector type | RJ45 (CN3) for Modbus |
method of access | Slave |
physical interface | 2-wire RS485 multidrop for Modbus |
transmission rate | Configurable |
status LED | 1 LED charge LED |
signalling function | Servo status and fault codes five 7-segment display units |
marking | CE |
type of cooling | Integrated fan |
operating position | Vertical |
width | 114 mm |
height | 225 mm |
depth | 195 mm |
net weight | 3.2 kg |
