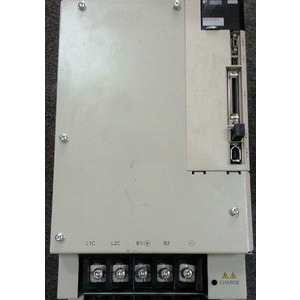

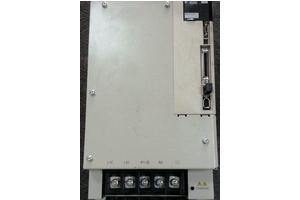

Yaskawa SGDV-550A01A

 Sigma -V series servo motor SGMGV.
Rated output: 11kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with hold brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed) SGDV-550A01A Design and Maintenance Manual SGDV-550A01A USER'S MANUAL.
Variety is complete (300W ~ 15kW, with hold brake) SGDV-550A01A
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type SGDV-550A01A Design and Maintenance Manual SGDV-550A01A USER'S MANUAL.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationHigh performance, use the best type of servo unit (high performance) SGDV-550A01A Design and Maintenance Manual SGDV-550A01A USER'S MANUAL.
Maximum applicable motor capacity: 0.1kw.
Power supply voltage: single phase AC100V.
Design sequence: B.
Hardware specifications: paint.
Interface: MECHATROLINK-III communication command type (linear servo motor).
Function: support 125 s communication cycle.
High performance sigma shaped -V-EX series.
2 models of high performance servo unit.
EX001 (support M- III high speed communication): the communication cycle is the minimum value of 125 s, which makes the response of the instruction becomes faster, and the track accuracy and processing ability are improved.
EX002 (no deviation of the specification): greatly improve the command tracking performance, and further improve the accuracy of trajectory control. Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 3kw.
Power supply voltage: three phase AC400V.
