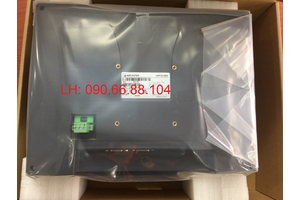

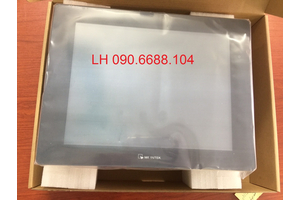

Màn hình cảm ứng Weintek CMT2128X

Feature

 12.1" 1024 x 768 Wide Viewing Angle LCD, LED Backlight

 Fan-less Cooling System  Built- in 4GB Flash Memory and RTC

 Micro SD Card Slot for Extension of Storage

 PCB coating process ensures high reliability to resist from corrosion in harsh environment.

 COM2 / COM3 RS-485 2W support MPI 187.5K, please use one at a time.

 Built-in Power Isolation

 NEMA4 / IP66 Compliant Front Pane

==================================

Display:  12.1” Wide Viewing Angle (WVA)
Resolution:  1024 x 768
Brightness (cd/m2):  500
Contrast Ratio:  1000:1
Backlight Type: LED
Backlight Life Time:  >30,000 hrs.
Colors: 16.7M
LCD Viewing Angle (T/B/L/R): 89/89/89/89
Pixel Pitch (mm) : 0.240 (H) x 0.240 (V)

Type:  4-wire Resistive Type
Accuracy:  Active Area Length(X)±2%, Width(Y)±2%

Memory Flash:  4 GB
RAM : 1 GB

Processor : Quad-core RISC

SD Card Slot:  Micro SD x 1
USB Host:  USB 2.0 x 1
USB Client:  N/A
Ethernet:  LAN 1: 10/100/1000 Base-T x 1
                  LAN 2: 10/100 Base-T x 1
COM Port:  Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W
                   Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
RS-485 Dual Isolation : Yes
CAN Bus: N/A
Audio Output: N/A

RTC : Built-in
Input Power : 24±20%VDC
Power Isolation : Built-in
Power Consumption:  1.2A@24VDC
Voltage Resistance:  500VAC (1 min.)
Isolation Resistance Exceed 50M at 500VDC
Specification
PCB Coating Yes
Enclosure Plastic
Dimensions WxHxD 317 x 243 x 41 mm
Panel Cutout 305 x 231 mm
Weight Approx. 1.7 kg
Mount Panel mount, VESA mount 75 x 75 mm

Protection Structure NEMA4 / IP66 Compliant Front Panel
Storage Temperature -20° ~ 60°C (-4° ~ 140°F)
Operating Temperature 0° ~ 55°C (32° ~ 131°F)
Relative Humidity 10% ~ 90% (non-condensing)
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certificate  CE marked

Software: EasyBuilder Pro : V6.08.01 or later versions
               Weincloud : EasyAccess 2.0 (Optional), Dashboard (Optional)
              CODESYS® : Optional

note: * Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.

         * CODESYS® is a trademark of 3S-Smart Software Solutions GmbH.

==================================
