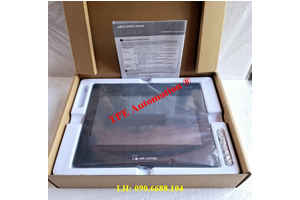

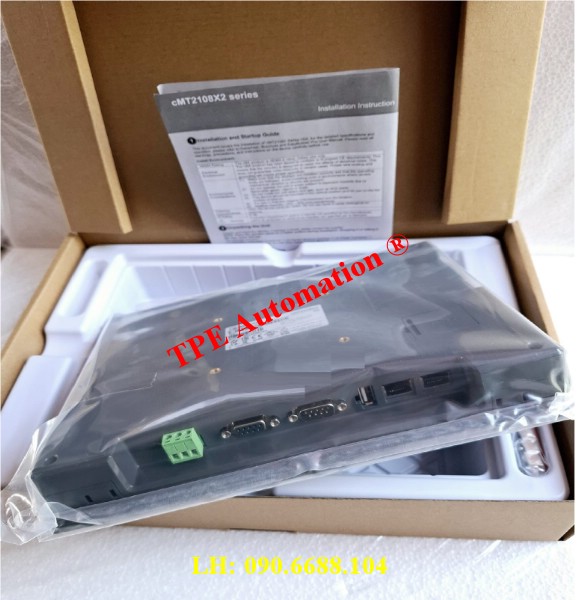

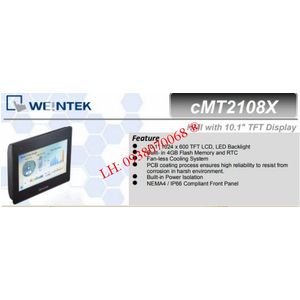

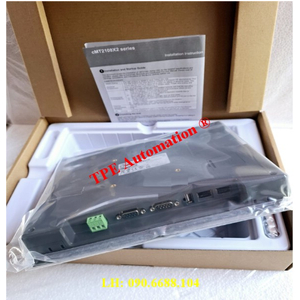

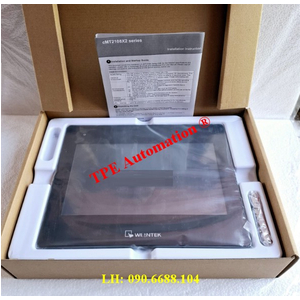

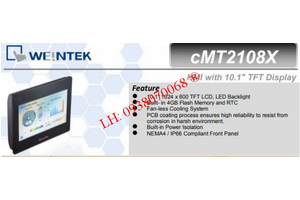

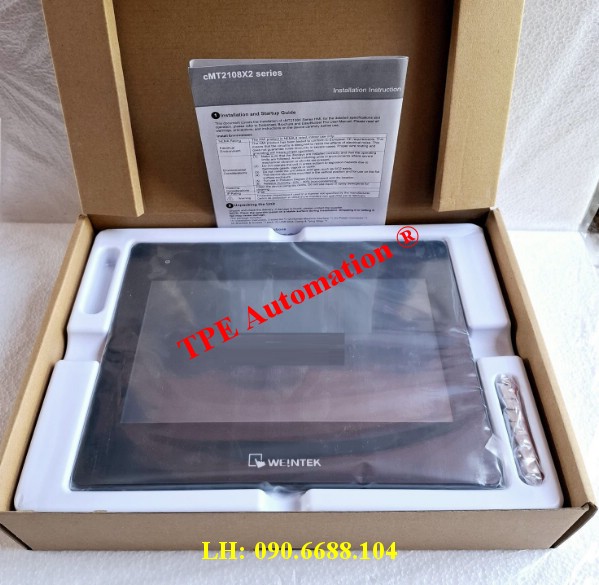

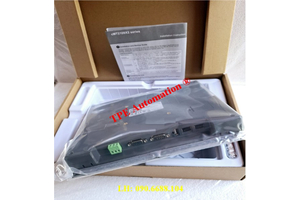

Màn hình cảm ứng Weintek CMT2108X

Display 10.1” TFT

Resolution 1024 x 600

Brightness (cd/m2) 350

Contrast Ratio 500:1

Backlight Type LED

Backlight Life Time >50,000 hrs.

Colors 16.7M

LCD Viewing Angle (T/B/L/R) 70/70/80/80

Pixel Pitch (mm) 0.2175 (H) x 0.2088 (V)

Type 4-wire Resistive Type

Accuracy Active Area Length(X)±2%, Width(Y)±2%

Flash 4 GB

RAM 1 GB

USB Host USB 2.0 x 1

Ethernet LAN 1: 10/100/1000 Base-T x 1

LAN 2: 10/100 Base-T x 1

COM Port

Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W

Con.B: COM1 RS-232 4W, COM3 RS-232 2W MPI is not supported.

Input Power 24±20%VDC

PCB Coating Yes

Enclosure Plastic

Panel Cutout 260 x 202 mm

Weight Approx. 1.2 kg

EasyBuilder Pro V6.05.02 or later versions

=======================
