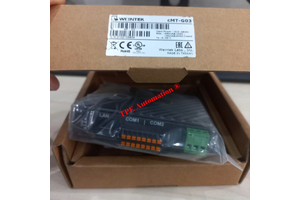

Màn hình cảm ứng HMI cMT-G03BL

  Weintek cMT-G03

Memory

 Flash : 256 MB

RAM : 256 MB

Processor : 32-bit RISC 528MHz

I/O Port

Ethernet 10/100 Base-T x 1

COM Port

COM1: RS-232 2W, RS-485 2W/4W

COM2: RS-232 2W, RS-485 2W/4W

RTC:  Built-in

Power

Input Power: 10.5~28VDC

Power Isolation: Built-in

Power Consumption: 300mA@12VDC;150mA@24VDC

Voltage Resistance: 500VAC (1 min.)

Isolation Resistance: Exceed 50M at 500VDC

Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Specification

PCB Coating: Yes

Enclosure: Plastic

Dimensions: 27 x 109 x 81 mm

Weight Approx: 0.14 kg

Mount 35 mm:  DIN rail mounting

Environment

Protection Structure : IP20

Storage Temperature: -20° ~ 60°C (-4° ~ 140°F)

Operating Temperature:  0° ~ 50°C (32° ~ 122°F)

Relative Humidity:  10% ~ 90% (non-condensing)

Software

EasyBuilder : Pro V6.01.02 or later versions

Weincloud: EasyAccess 2.0 (Optional)
