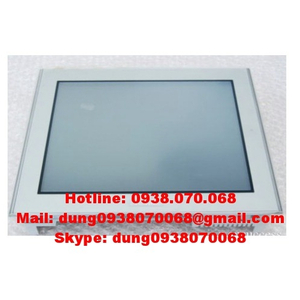

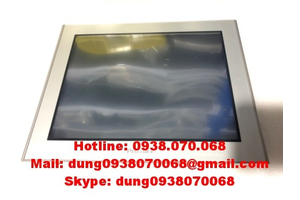

Proface AGP3500-L1-D24, (PFXGP3500LAD)
AGP3500-L1-D24
Proface
12 tháng
LH: 0938070068
Liên hệ: 0938.070.068 Mr Dũng Mail: dung0938070068@gmail.com Skype: dung0938070068
Display Type | Monochrome LCD | ||
---|---|---|---|
Display Size | 10.4" | ||
Resolution | 640 x 480 pixels (VGA) | ||
Dot pitch | W0.33 x H0.33 mm [W0.01 x H0.01 in.] | ||
Effective Display Area | W216.0 x H160.8 mm [W8.5 x H6.33 in.] | ||
Display Colors | Monochrome (16 Shades) | ||
Backlight | CCFL (User nonreplaceable parts, return system to distributor.) | ||
Brightness Control | 8 Levels (Adjusted with the touch panel) | ||
Contrast Control | 8 Levels (Adjusted with the touch panel) | ||
Backlight Service Life | 50,000 hrs. or more (continuous operation at 25℃ before backlight brightness decreases to 50% or backlight starts to blink) | ||
Language Fonts | Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable. | ||
Character Sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts | ||
Font Sizes | Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times. | ||
Text | 8 x 8 dots | 80 char. x 60 rows | |
8 x 16 dots | 80 char. x 30 rows | ||
16 x 16 dots | 40 char. x 30 rows | ||
32 x 32 dots | 20 char. x 15 rows | ||
Control Memory | Variable Area | SRAM 64 KB (uses lithium battery) | |
Program Area | FLASH EPROM 132 KB | ||
Number of Step | Equivalent to 15,000 steps | ||
Application Memory | FLASH EPROM 16 MB | ||
Data Backup | SRAM 320KB (uses lithium battery) | ||
Clock Accuracy | ±65 sec./month (deviation at room temperature and power is OFF) | ||
Touch Panel Type | Resistive Film (analog) | ||
Touch Panel Resolution | 1,024 X 1,024 | ||
Touch Panel Service Life | 1,000,000 times or more | ||
Interface | Serial (COM1) | RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug) | |
Serial (COM2) | RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket) | ||
Ethernet (LAN) | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1 | ||
Expansion Unit 1 | Communication Expansion Unit x 1 | ||
USB (TYPE-A) | Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less | ||
Expansion Memory | Function Expansion Memory x 1 (Inside interface cover) | ||
CF Card | Compact Flash CF Card Slot (TYPE-II) X 1 | ||
Sound Output | Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1 | ||
AUX Input/Output | Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1 |
