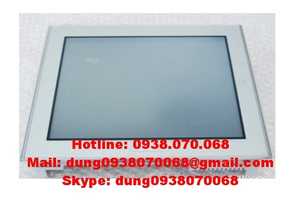

Pro-face AGP3500-T1-D24,(PFXGP3500TAD), AGP3500-T1-D24-M
PFXGP3500TAD
Proface
12 tháng
Liên hệ: 0938.070.068
Display Type |
TFT Color LCD
|
---|---|
Display Size |
10.4"
|
Resolution |
640 x 480 pixels (VGA)
|
Dot pitch |
W0.33 x H0.33 mm [W0.01 x H0.01 in.]
|
Effective Display Area |
W211.2 x H158.4 mm [W8.31 x H6.24 in.]
|
Display Colors |
65,536 Colors (No blink)/16,384 Colors (Blink)
|
Backlight |
When GP Revision 5 and later:
LED (When replacement is required,contact your local GP distributor) When GP Revision 5 and earlier: CCFL (Replaceable) |
Brightness Control |
8 Levels (Adjusted with the touch panel)
|
Contrast Control |
Not applicable
|
Backlight Service Life |
50,000 hrs. or more (continuous operation at 25℃ before backlight brightness decreases to 50% or backlight starts to blink)
|
Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.
|
Character Sizes |
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
|
Font Sizes |
Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.
|
8 x 16 dots |
80 char. x 30 rows
|
16 x 16 dots |
40 char. x 30 rows
|
32 x 32 dots |
20 char. x 15 rows
|
8 x 8 dots |
80 char. x 60 rows
|
Program Area |
FLASH EPROM 132 KB
|
Number of Step |
Equivalent to 15,000 steps
|
Variable Area |
SRAM 64 KB (uses lithium battery)
|
Application Memory |
FLASH EPROM 16 MB
|
Data Backup |
SRAM 320KB (uses lithium battery)
|
Clock Accuracy |
±65 sec./month (deviation at room temperature and power is OFF)*7
|
Touch Panel Type |
Resistive Film (analog)
|
Touch Panel Resolution |
1,024 X 1,024
|
Touch Panel Service Life |
1,000,000 times or more
|
Serial (COM1) |
RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
Serial (COM2) |
RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)
|
Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1
|
Expansion Unit 1 | |
Expansion Unit 2 | |
USB (TYPE-A) |
Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less
|
Expansion Memory | |
CF Card |
Compact Flash CF Card Slot (TYPE-II) X 1
|
Sound Output |
Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1
|
AUX Input/Output |
Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1
|
