| Model |

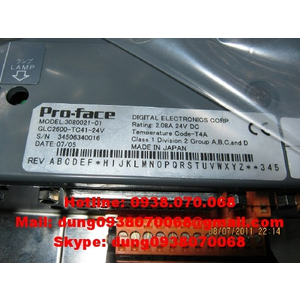

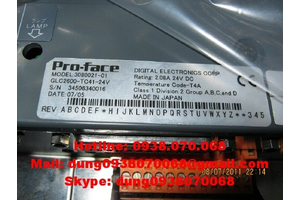

GLC2600-TC41-24V
→ |
GLC2600-TC41-200V
→ |
| Type |
TFT Color LCD |
| Display Colors |
256 colors (no blink)/ 64 colors (3-speed blink)
(software control)*1 |
| Backlight |
CCFL (Service life: more than 50,000 at 24 hr. operation) |
| Resolution |
800 × 600 pixels |
| Effective Display Area (mm) |
246.0(W) × 184.5(H) |
| Brightness Control |
4 levels of adjustment available via touch panel |
| Contrast Control |
- |
| Language Character Sets |
ASCII: (Code page 850) Alphanumeric (incl. European characters)
Chinese: (GB2312-80 codes) simplified Chinese fonts
Japanese: ANK 158, Kanji: 6962 (JIS Standards 1 & 2)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Taiwanese: (Big 5 codes) traditional Chinese fonts |
| Text |
8 × 8 dots |
100 char. × 75 rows |
| 8 ×16 dots |
100 char. × 37 rows |
| 16 × 16 dots |
50 char. × 37 rows |
| 32 × 32 dots |
25 char. × 18 rows |
| Character Sizes*2 |
8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots |
| Font Sizes |
Width can be expanded 1 to 8 times
Height can be expanded 1/2*3, 1 to 8 times |
| Application Memory |
4MB FLASH EPROM |
| Data Backup Memory |
SRAM 256KB - uses lithium battery*4 |
| Control Memory*5 |
Program Area: FLASH EPROM 128KB
Variable Area: SRAM 64KB*6 - uses lithium battery*4
|
| Touch Panel Resolution |
40 × 30 keys/ screen - 1 or 2 point touch |
External
Interfaces |
Serial Interface |
Asynchronous Transmission: RS-232C/ RS-422,
Data Length: 7 or 8 bits, Stop bit: 1 or 2 bits,
Parity: Odd or Even,
Data Transmission Speed: 2400bps to 115.2Kbps, 187.5Kbps*7 |
Expansion Serial
Interface |
Asynchronous Transmission: RS-232C
Data Length: 7 or 8 bits
Stop Bit: 1 or 2 bits
Parity: None, Odd or Even
Data Transmission Speed: 2400bps to 38.4kbps |
| Network Interface |
IEEE802.3, 10BASE-T |
CF Card
Interface |
1 slot |
Expansion CF Card
Interface |
CF Card Front Maintenance Unit Connector |
Sound Output
Interface |
External Speaker Connection (Terminal Block)
Monaural 1CH
Speaker Output 70mW (Rated Load: 8Ω, Frequency: 1kHz)
Sound Line Out Output 2.7Vp-p (Rated Load: 10kΩ)
Wire Gauge: AWG28 to AWG16 |
| Remote Reset Input |
Remote Reset Input: 1 point,
Input Voltage: DC24V ±10%,
Input Current: 4mA (TYP), Min. Input Pulse Width: 2ms
Operating Voltage: (When ON) Min. DC21.1V/ (When OFF) Max. DC3V
Isolation Method: Photocoupler Isolation |
FLEX
NETWORK |
Communication
Style |
1:N |
Connection
Format |
Multi-Drop Connection |
Communication
Range |
200m/channel at 6Mbps,
100m/channel at 12Mbps |
Communication
Format |
Cyclic Time Division, half-duplex |
Communication
Speed |
6Mbps/ 12Mbps |
Communication
I/F |
Differential, pulse-transformer isolation |
| Error Check |
Format, bit, CRC-12 verification |
Max. Number
of Nodes |
63 (1008 I/O points) |
| Printer Interface |
Compatible with NECPC-PR201/PL, EPSON ESC/P24-J84(C), HP Laser Jet, PCL 4 command, EPSON PM/Stylus (6-color ink), EPSON Stylus (4-color ink) compatible printers*8 |
| Tool Connector |
Asynchronous TTL level nonprocedure command I/F
Used for transferring data between the GLC application software and the GLC.
Used for data transfer with the 2-Port feature.
Used for a variety of devices, including a bar-code reader. |
