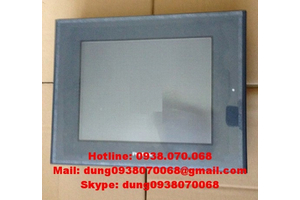

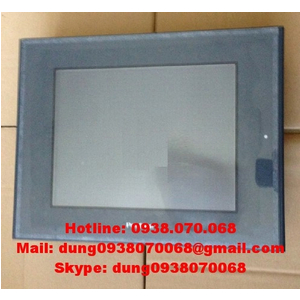

Proface GLC2500-TC41-24V, GLC2500-TC41-200V

(1 đánh giá)

Mã sản phẩm : GLC2500-TC41-24V

Xuất xứ : Proface

Bảo hành : 12 tháng

Liên hệ: 0938.070.068 Mr Dũng Mail: dung0938070068@gmail.com Skype: dung0938070068

LH: 0938070068

THÔNG TIN SẢN PHẨM

Liên hệ: 0938.070.068 Mr Dũng
Mail: dung0938070068@gmail.com
Skype: dung0938070068

Model			GLC2500-TC41-24V
Type			TFT Color LCD
Display Colors			256 colors (no blink)/ 64 colors (3-speed blink) (software control)*1
Backlight			CCFL (Service life: more than 50,000 at 24 hr. operation)
Resolution			640 × 480 pixels
Effective Display Area (mm)			211.2(W) × 158.4(H)
Brightness Control			4 levels of adjustment available via touch panel
Contrast Control			-
Language Character Sets			ASCII: (Code page 850) Alphanumeric (incl. European characters) Chinese: (GB2312-80 codes) simplified Chinese fonts Japanese: ANK 158, Kanji: 6962 (JIS Standards 1 & 2) Korean: (KSC5601 - 1992 codes) Hangul fonts Taiwanese: (Big 5 codes) traditional Chinese fonts
Text	8 × 8 dots		80 Char. × 60 rows
	8 ×16 dots		80 Char. × 30 rows
	16 × 16 dots		40 Char. × 30 rows
	32 × 32 dots		20 Char. × 15 rows
Character Sizes*2			8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots
Font Sizes			Width can be expanded 1 to 8 times Height can be expanded 1/2*3, 1 to 8 times
Application Memory			4MB FLASH EPROM
Data Backup Memory			SRAM 256KB - uses lithium battery*4
Control Memory*5			Program Area: FLASH EPROM 128KB Variable Area: SRAM 64KB- uses lithium battery*4
Touch Panel Resolution			32 × 24 keys/ screen - 1 or 2 point touch
External Interfaces	Serial Interface		Asynchronous Transmission: RS-232C/ RS-422, Data Length: 7 or 8 bits, Stop bit: 1 or 2 bits, Parity: Odd or Even, Data Transmission Speed: 2400bps to 115.2Kbps, 187.5Kbps*6
	Expansion Serial Interface		Asynchronous Transmission: RS-232C Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, Odd or Even Data Transmission Speed: 2400bps to 38.4kbps
	Network Interface		IEEE802.3, 10BASE-T
	CF Card Interface		1 slot
	Expansion CF Card Interface		CF Card Front Maintenance Unit Connector
	Sound Output Interface		External Speaker Connection (Terminal Block) Monaural 1CH Speaker Output 70mW (Rated Load: 8Ω, Frequency: 1kHz) Sound Line Out Output 2.7Vp-p (Rated Load: 10kΩ) Wire Gauge: AWG28 to AWG16
	Remote Reset Input		Remote Reset Input: 1 point, Input Voltage: DC24V ±10%, Input Current: 4mA (TYP), Min. Input Pulse Width: 2ms Operating Voltage: (When ON) Min. DC21.1V/ (When OFF) Max. DC3V Isolation Method: Photocoupler Isolation
	FLEX NETWORK	Communication Style	1:N
		Connection Format	Multi Drop Connection
		Communication Range	200m/CH at 6Mbps, 100m/CH at 12Mbps
		Communication Format	Cyclic Data Transfer, Half-duplex
		Communication Speed	6Mbps/ 12Mbps
		Communication I/F	Differential, pulse-transformer isolation
		Error Check	Format Test, Bit Test, CRC-12 Test
		Max. Number of Nodes	63 (1008 I/O points)
	Printer Interface		Compatible with NECPC-PR201/PL, EPSON ESC/P24-J84(C), HP Laser Jet, PCL 4 command, EPSON PM/Stylus (6-color ink), EPSON Stylus (4-color ink) compatible printers*7
	Tool Connector		Asynchronous TTL level nonprocedure command I/F Used for transferring data between the GLC application software and the GLC. Used for data transfer with the 2-Port feature. Used for a variety of devices, including a bar-code reader.

Changing the "Colors" setting to "256 colors" will disable the blink feature on all your project screens. If you wish to use the blink feature, do not change this setting to "256 colors."
The display font will differ depending on which (language) character, or which size you select.
Only available when using "1/2 Byte Character" settings via software. (Only Japanese, Chinese, Taiwanese and Korean characters.)
A Lithium battery's lifetime is:
10 years when the battery's ambient temperature is under 40℃
4.1 years when the battery's ambient temperature is under 50℃
1.5 years when the battery's ambient temperature is under 60℃
When used for backup:
Approximately 60 days, with a fully charged battery
Approximately 6 days, with a half-charged battery
The 128-KB program area is allotted in SRAM for online editing use.
SIEMENS SIMATIC S7-200/300/400 series (MPI port only). Please contact your Pro-face sales representative for supported models and other details.
Printers with only Windows drivers cannot be used. However, certain types of printers with both Windows® and DOS® drivers can be used. For details, contact your local GLC distributor.

General Specifications

Model		GLC2500-TC41-24V	GLC2500-TC41-200V
Electrical	Rated Voltage	DC24V	AC100 to 240V
	Rated Voltage Range	DC19.2 to DC28.8V	AC85 to 265V
	Power Consumption	50W or less	50VA or less (ACIN100V) 85VA or less (ACIN240V)
	Allowable Voltage Drop	10ms or less	1 cycle or less (Actual drop must be less than 1 second)
	Voltage Endurance	AC1000V, 20mA for up to 1 minute (between charging and FG terminals)	AC1500V, 20mA for up to 1 minute (between charging and FG terminals)
	Insulation Resistance	10MΩ or higher at DC500V (between charging and FG terminals)
Environmental	Ambient Operating Temperature*8	0 to 50℃
	Storage Temperature	-20 to 60℃
	Ambient Humidity	10 - 90% RH (non-condensing wetbulb temperature 39℃ or less)
	Storage Humidity	10 - 90% RH (non-condensing wetbulb temperature 39℃ or less)
	Vibration Resistance	Compatible with IEC61131-2 When vibration is NOT continuous: 10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s² When vibration is continuous: 10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s² X, Y, Z directions for 10 times (80min.)
	Noise Immunity	Noise Immunity:1500Vp-p Pulse Duration: 1µs, Rise Time: 1ns (via noise simulator)
	Electrostatic Discharge Immunity	6kV (complies with IEC 61000-4-2 Level 3)
	Corrosive Gasses	Free of corrosive gases
Structural	Grounding	100Ω or less, or your country's applicable standard
	Ratings	Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12*9
	External Dimensions	317W × 243H × 58D
	Weight	3.5kg (7.72lb) or less
	Cooling Method	Natural air circulation

When installing the GLC in a cabinet or enclosure, the term “ambient operation temperature” indicates the cabinet or enclosure’s internal temperature. The LCD displays may occasionally blur when they are used for hours at over 40℃ ambient operating temperature. This is a temporary phenomenon. After the temperature returns to normal, the display will be restored to normal. The GLC's operation will not be affected even though the display is blurred.
The degree of protection provided by these products is equivalent to IP65f, however their performance cannot be guaranteed for every environment. Be sure to confirm your work environment requirements prior to installation.
