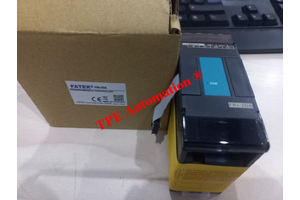

MODULE ANALOG FATEK FBs-2DA ( 2CH)

MODULE ANNALOG FATEK FBs-2DA

Total Channels – 2
Resolution- 14 bit
Signal Resolution – 0.3mV(Voltage), 0.61uA(Current)
I/O Points Occupied –
2(2DA) RO(Output Register)
Conversion Time- Updated each scan
Accuracy- ±1 %
Max. and Min. output loading-
Voltage Output- 500~1MΩ
Current Output- 0~500Ω
Output Range- -10~+10V, -5~+5V, 0~10V, 0~5V-20~+20mA, -10~+10mA, 0~20mA, 0~10mA
Isolation- Transformer(Power) and photo-coupler(Signal)
Indicator(s) – 5V PWR LED
External Power and Consumption-
24V-15%/+20%,
120mA(4DA) or 70mA(2DA) max.
Internal Power Consumption- 5V, 20mA
Operating Temperature- 0 ~ 60 ℃
Storage Temperature- -20 ~ 80 ℃
Dimensions- 40(W)x90(H)x80(D) mm
