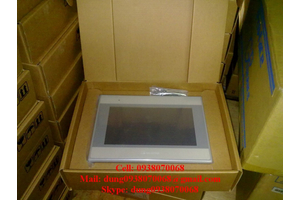

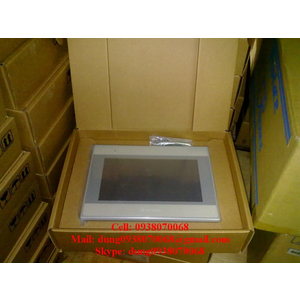

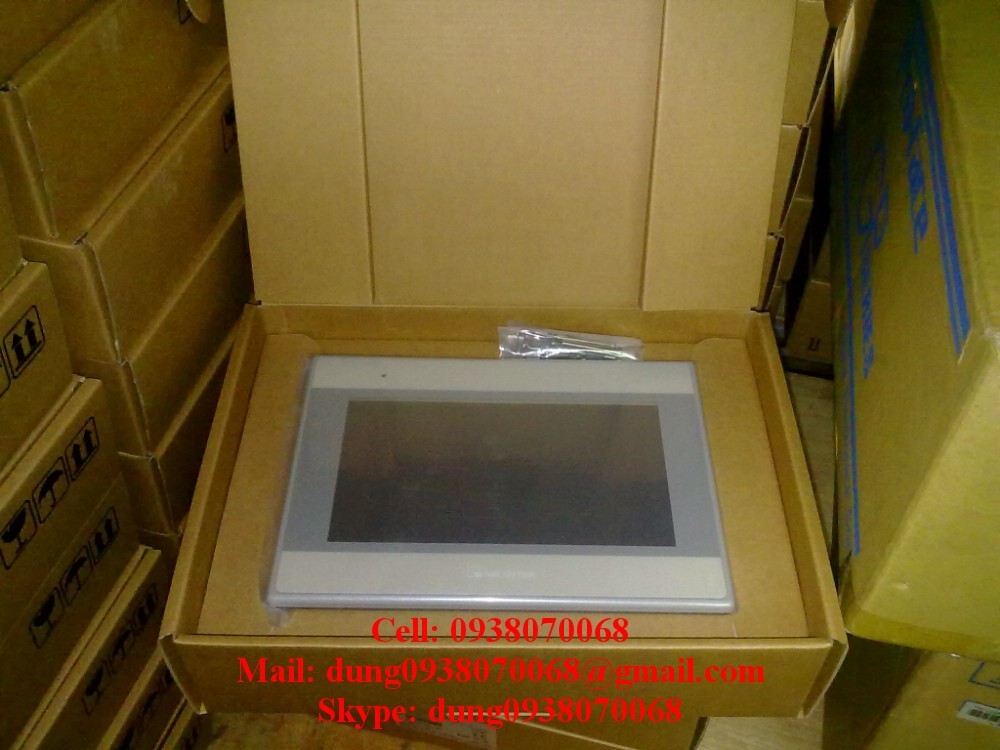

Màn hình Weintek MT8070iE

7″ 800 X 480 TFT LCD

Fan-less cooling system

Built-in flash memory and RTC

NEMA4/IP65 compliant front panel

LED Back Light

One USB Host and One USB Client Port

Power Isolator

COM1 RS485 supports MPI 187.5K

MT8000 series is the new HMI generation of Weintek. With the design concept of meeting customers’ satisfaction while easy-to-Use attribute as before, a MT8000 not only performs as a Human Machine Interface but also plays as a role of data exchange center. Through the most popular Ethernet connection, data can be shared among MT8000s without limitation and any SCADA/HMI software on the PC can simply access data from MT8000s. MT8000 series is the best choice for your requirement tomorrow.

The MT8070iH is equipped with a USB 1.1 host, a USB 2.0 high speed device and SD card slot

Type: 4-wires, analog resistive

Resolution: continuous

Light Transmission: above 80%

Life: 1 million activation minimum

Operating temperature: 0° ~ 50°C (32° ~ 122°F)

Storage temperature: -20° ~ 60°C (-4° ~ 140°F)

Relative humidity: 10% ~ 90% @ 40°C, non-condensing

Shock (operation): 10 to 25Hz(X,Y,Z direction 2G 30minutes)

CE/FCC Complies with EN 55022: 2006,Class A
EN 55024:1998+A1:2001+A2:2003

EN 61000-3-2:2006

EN 61000-3-3:1995+A1:2001+A2:2005

Front panel meets NEMA4 / IP6
