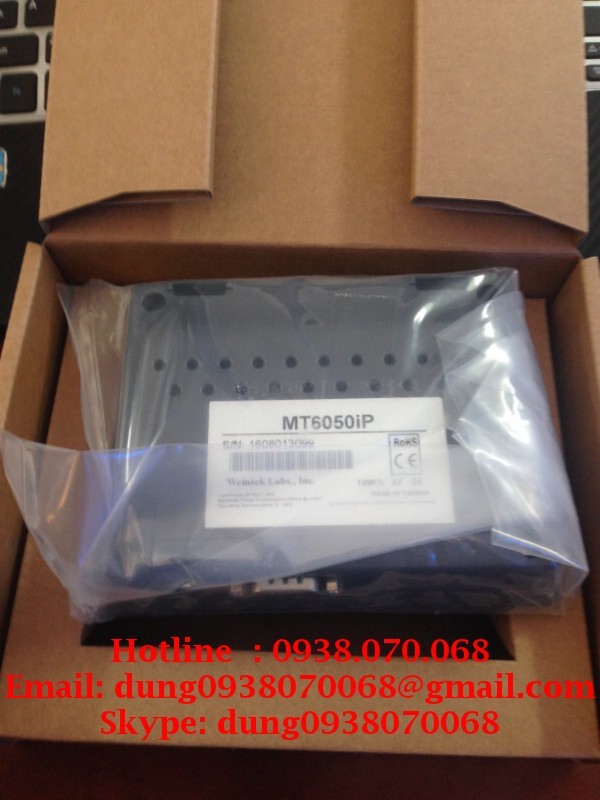

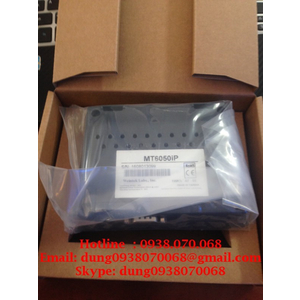

Màn Hình WEINTEK MT6050iP

Liên hệ: 0938.07.00.68
Email: dung0938070068@gmail.com
Skype: dung0938070068

MT6000 series is the new HMI generation of Weintek. With the design concept of meeting customers’ satisfaction while easy-to-Use attribute as before, a MT6000 not only performs as a Human Machine Interface but also plays as a role of data exchange center. MT6000 series is the best choice for your requirement tomorrow.
·         4.3″ 480 X 272 TFT LCD
·         Fan-less cooling system
·         NEMA4/IP65 compliant front panel
·         LED Backlight
·         One USB Client Port
·         Power Isolator
·         COM1 RS485 supports MPI 187.5K
·         Type: 4-wires, analog resistive
·         Resolution: continuous
·         Light Transmission: above 80%
·         Life: 1 million activation minimum
·         Operating temperature: 0° ~ 50°C (32° ~ 122°F)
·         Storage temperature: -20° ~ 60°C (-4° ~ 140°F)
·         Relative humidity: 10% ~ 90% @ 40°C, non-condensing
·         Shock (operation): 10 to 25Hz(X,Y,Z direction 2G 30minutes)
·         CE/FCCComplies with EN 55022: 2006,Class A
EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006
EN 61000-3-3:1995+A1:2001+A2:2005
·         Front panel meets NEMA4 / IP6
