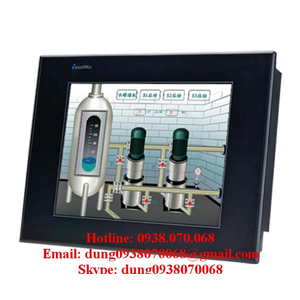

1. 10.4 inch touch screen, streamline design
2. 65536 true colors display, support BMP, JPEG format pictures
3. Rich 3D picture library can make the screen more vividly
4. Flexible component selection space, self-defined animation track design
5. Simple switch setting for changing the modes, precise touch area adjust function
6. Self-defined data collection and save function
7. Support various data process modes, such as time trend map, XY trend map…
8. 2 USB ports can realize data duplication and transferring
9. Two com ports can communication independently and realize multi-THs communicate with one PLC.
Type notes:
Series
|
Model
|
LCD size
|
Resolution
(pixel)
|
Screen
|
PORT1
Download port
|
PORT2
PLC port
|
PORT3
EXT port
|
USB-A
port
|
Download way
|
THA65 |
THA65-MT
|
10.4″
|
800*600
|
128
MB
|
232/485
|
232/485/422
|
-
|
-
|
USB-B
|
THA65-UT
|
2
|
Specifications:
Item
|
THA65
|
Electrical |
Input voltage |
DC20-DC28V |
Consumption current |
630mA |
Momentary power off allowance |
Less than 10ms |
Withstand voltage |
AC1000V-10mA 1 minute ( signal and time ) |
Insulated impedance |
DC500V- about 10MΩ ( signal and time ) |
Interface
|
COM1 |
Support RS-232/RS-485 |
COM2 |
Support RS-232/RS422/RS485 |
USB1 |
USB-A ( accord with USB2.0 ) |
USB2 |
USB-B ( accord with USB2.0 ) |
|
|
|
|
Environment
|
Operation temperature |
0-50℃ |
Reserve temperature |
-20-60℃ |
Environment temperature |
20-85% ( no condensation ) |
Withstand oscillation |
10-25Hz ( X, Y, Z each direction 30 minutes 2G ) |
Anti-jamming |
Voltage noise: 1000Vp-p, pulse 1us, 1 minute |
Surrounding air |
No corrosive gas |
Protection construction |
IP65 |
Screen specification
|
Type |
65536 true colors |
Screen size |
10.4 inch |
Use life |
More than 50000 hours, 24 hours running when surrounding temperature is 25 ℃ |
Resolution |
800*600 |
Contrast |
Non-adjustable |
Character |
Chinese, English, Korean, Japanese… |
Character size |
Any size and font |
Touch panel |
4-wire resistance mode |
Memory
|
Screen |
128MB |
Construction
|
Cooling method |
Natural air cooling |
Exterior dimension |
311.0*234.0*48.0mm |
Mounting dimension |
302.0*225.0mm |
Dimension (Unit: mm)
Add 1-2mm for opening hole.
|
