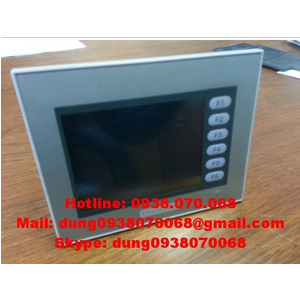

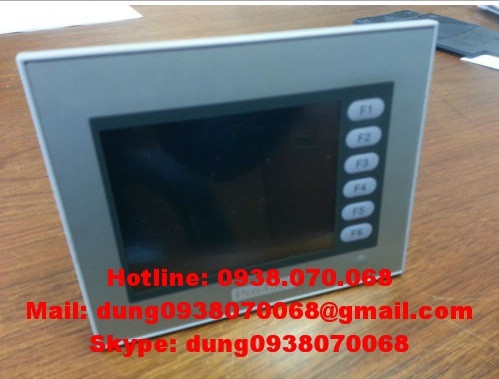

Màn hình Proface ST402-AG41-24V
ST402-AG41-24V
Pro-face
12 tháng
Liên hệ: 0938.070.068
Type | Monochrome LCD | ||
---|---|---|---|
Display Colors | Black and White (2 Shades)/ Black and White (8 Shades) (software control) |
||
Backlight | LED Backlight | ||
Resolution | 320 × 240 pixels | ||
Effective Display Area | 76.7mm [3.02in.](W) × 57.5mm [2.26in.](H) | ||
Brightness Control | 2 levels of adjustment available via touch panel | ||
Contrast Adjustment | 8 levels of adjustment available via touch panel |
Application Memory | User screen area 640KB (Approx. 200 screens at 3.2KB/screen) |
||
---|---|---|---|
Data Backup Memory | 96KB User backup memory Uses a rechargeable lithium battery |
||
Touch Panel Resolution | 8 × 6 keys/ screen - 1 or 2 point touch | ||
Interfaces | Serial Interface | Asynchronous Transmission: RS-422 Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits, Parity: None, Odd or Even Data Transmission Speed: 2,400bps to 115,200bps |
|
Tool Connector | Asynchronous TTL level nonprocedural command I/F Used for transferring data to and from the ST application software and the ST. Used for data transfer with the 2-Port feature. < During Operation> Used for a variety of devices, including a bar-code reader. |
||
Function Switch Specification |
No. of Function Switches | 6 | |
Switch type | Touch Panel | ||
Server Life | 1,000,000 times |
External Dimensions | 130mm [5.12in]W × 104mm [4.09in]H × 41mm [1.61in]D |
---|
