| Model (Global Code) |

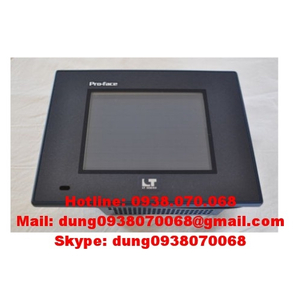

GLC150-SC41-XY32SK-24V
→Recommended Substitute |
GLC150-BG41-XY32SK-24V
(PFXGLC150BDA1)
GLC150-BG41-XY32SC-24V
(PFXGLC150BDA2)
→Recommended Substitute |
| Type |
STN color LCD |
Monochrome LCD |
| Display Colors |
64 colors |
Blue-mode |
| Backlight |
CCFL (Service life: more than 36,000 at 24 hr. operation) |
CCFL (Service life: more than 25,000 at 24 hr. operation) |
| Resolution |
320 × 240 pixels |
| Nominal Display Area (mm) |
118.2(W) × 89.4(H) |
115.2(W) × 86.4(H) |
| Contrast Control |
8 levels of adjustment available via touch panel |
| Language Character Sets |
ASCII: (Code page 850) Alphanumeric (incl. European characters)
Chinese: (GB2312-80 codes) simplified Chinese fonts
Japanese: ANK 158, Kanji: 6962 (JIS Standards 1 & 2)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Taiwanese: (Big 5 codes) traditional Chinese fonts |
| Text |
8 × 8 dots |
40 char. × 30 rows |
| 8 ×16 dots |
40 char. × 15 rows |
| 16 × 16 dots |
20 char. × 15 rows |
| 32 × 32 dots |
10 char. × 7 rows |
| Character Sizes*1 |
8 × 8, 8 × 16, 16 × 16, 32 × 32 dots |
| Font Sizes |
Both height and width can be expanded 1, 2, 4, or 8 times |
| Application Memory |
FLASH EPROM 1MB |
| Data Backup Memory |
SRAM 96KB - uses lithium battery*2 |
Control
Memory |
Variable Data
Area |
SRAM 32KB - uses lithium battery*2
(Including bit, integer, timer, counter) |
Program
Area |
FLASH EPROM 128KB |
| Clock Accuracy |
± 65 seconds/month (at room temperature) |
| Touch Panel |
16 × 12 keys/ screen - 1 or 2 point touch |
- The display font will differ depending on which (language) character, or which size you select.
- A Lithium battery's lifetime is:
10 years when the battery's ambient temperature is under 40℃
4.1 years when the battery's ambient temperature is under 50℃
1.5 years when the battery's ambient temperature is under 60℃
When used for backup:
Approximately 60 days, with a fully charged battery
Approximately 6 days, with a half-charged battery
General Specifications
| Model (Global Code) |
GLC150-*41-XY32S*-24V (PFXGLC150*DA*) |
| Electrical |
Rated Voltage |
DC24V |
| Rated Voltage Range |
DC20.4 to 28.8V |
Allowable
Voltage Drop |
10ms or less |
Power
Consumption |
20W max. |
| Rush current |
30A max. |
Voltage
Endurance |
AC1000V, 10mA for up to 1 minute
(between charging and FG terminals) |
| Insulation Resistance |
20MΩ or higher at DC500V
(between charging and FG terminals) |
| Environmental |
Ambient Operating Temperature *1 |
0 to 50℃ |
| Storage Temperature |
-20 to 60℃ |
| Ambient Humidity |
10 - 90% RH
(non-condensing wetbulb temperature 39℃ or less) |
| Storage Humidity |
10 - 90% RH
(non-condensing wetbulb temperature 39℃ or less) |
| Dust |
0.1mg/m3 or less (non-conductive levels) |
Corrosive
Gasses |
Free of corrosive gases |
Atmospheric Endurance
(Operation Altitude) |
800 to 1114hPa (2000 meters or lower) |
Vibration
Resistance |
Compatible with IEC61131-2
When vibration is NOT continuous:
10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2
When vibration is continuous:
10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2
X, Y, Z directions for 10 times (80min.) |
| Noise Immunity |
Noise Immunity:1500Vp-p
Pulse Duration: 1µs, Rise Time: 1ns
(via noise simulator) |
| Electrostatic Discharge Immunity |
6kV (complies with IEC 61000-4-2 Level 3) |
| Structural |
Grounding |
100Ω or less, or your country's applicable standard |
| Rating |
Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12*2 |
| External Dimensions (mm) |
207W × 157H × 75.8D |
| Weight |
1.5kg (3.3lb) or less |
| Cooling Method |
Natural air circulation |
- Ensure that the temperatures both at the display surface and inside the panel are within the prescribed ambient temperature range during use. Use at temperatures outside this range may lead to malfunction.
- Limited to the front face after installation in a panel. Testing equivalent to IP65f conditions has been performed; however, performance cannot be guaranteed for every type of environment. If the product is subjected to an oil mist over an extended period of time, even when using the oil designated in the tests, or if the product is subjected to an extremely low-viscosity cutting oil, some oil penetration may result due to peeling of the front sheet. If this occurs, a countermeasure is required. The same kind of penetration, or plastic deformation, may also occur with oils other than those designated. Confirm ambient environment prior to installation. Furthermore, rubber gaskets that have been used for extended periods of time, and those that have been scratched or soiled after panel installation, may not provide sufficient protection. It is recommended that the rubber gasket be replaced periodically to ensure stable protection.
DIO Interface Specifications
Input
| Model (Global Code) |
GLC150-*41-XY32S*-24V (PFXGLC150*DA*) |
| Input Voltage |
DC24V |
| Max. Allowable Voltage |
DC26.4V |
| Input Type |
Sink/ Source input |
| Rated Current |
5mA (24V) |
| Input Resistance |
4.7kΩ |
| Standard Operating Range |
ON voltage: 21V min., OFF voltage: 7V max. |
| Input Delay |
OFF→ON 10ms max., ON→OFF 10ms max. |
| Common |
1 |
| Common Structure |
16 points/common |
| External Connection |
40-pin connector (also used for output) |
| Input Points |
16 |
| Input Signal Indication |
LED lights for each point ON (logic side) |
| Isolation Method |
Photocoupler isolation |
| External Power Supply |
For Signal: DC24V |
Output
| Model (Global Code) |
GLC150-*41-XY32SK-24V (PFXGLC150*DA1) |
GLC150-*41-XY32SC-24V (PFXGLC150BDA2) |
| Input Voltage |
DC24V |
| Rated Voltage Range |
DC24V ±10% |
| Output Type |
Type A1 Sink output |
Type A2 Source output |
| Max. Load Current |
0.2A/point, 1.6A/common |
| Output Voltage Drop |
2.5V or less |
| Output Delay |
OFF→ON: 2ms max., ON→OFF: 2ms max. |
| Leakage Current when OFF |
0.4mA or less |
| Output Classification |
Transistor output |
| Common |
1 |
| Common Structure |
16 points/common |
| External Connection |
40-pin connector (also used for input) |
| Output Protection Classification |
No protection |
| Internal Fuse |
3.5A, 125V chip fuse (not replacable) |
| Surge Suppression Circuit |
Diode |
| Output Points |
16 |
| Output Signal Indication |
LED lights for each point ON (logic side) |
| Isolation Method |
Photocoupler isolation |
| External Power Supply |
DC24V |
